This appendix is for engineers integrating with or operating Orbit. Each feature is marked ✅ Available, 🟡 Partial, or 🔜 Not yet wired so you can build against what's real today.

Status honesty

Some surfaces below ship a working data model and management API but aren't fully wired end-to-end yet (e.g. the campaign dialer, programmatic API-key auth). They're flagged so you don't build against a stub.

1. Authentication — ✅ Available

Model: stateless JWT (HS256), sent as Authorization: Bearer <jwt>.
Tenant resolution: the FQDN subdomain identifies the tenant (acme-orbit.comstice.com → tenant acme); login is POST /auth/login.
Passwords: hashed with bcrypt. Token lifetime is short-lived (the login service defaults to ~8 hours); /auth/refresh re-issues, /auth/logout is a client-side no-op (stateless).
Internal SSO: /auth/exchange trades a valid token for a fresh session (admin ↔ agent) — used by the Agent SDK; not an external IdP.
Token storage (web UI): browser localStorage (admin_auth_token, and a separate agent token). No cookies.
MFA / SSO (SAML/OAuth/OIDC): 🔜 not present today.

All protected endpoints (/api/...) require a Bearer JWT and run on tenant-scoped connections (row-level security + per-router ownership checks).

2. API keys — 🟡 Partial (issue & manage; programmatic auth not yet wired)

You can mint and revoke scoped API keys from Settings → API Keys (or REST):

Aspect	Detail
Format	`sk_…` (32 random bytes, base64url). Shown once at creation.
Storage	Only the SHA-256 hash + a 10-char display prefix are kept.
Scopes	Free-form list (e.g. `calls`, `recordings`, `users`, `queues`).
Expiry	Optional `expires_at`.
Gating	Requires the `api-access` license + `api_keys.create` / `api_keys.delete` permission.
REST	`GET / POST / DELETE /api/api-keys`.

Not yet consumable

Keys are issuable and validatable in the data layer, but no public endpoint authenticates with an API key yet — every real API today is JWT-Bearer (§1). Treat API keys as forward-looking until an x-api-key auth path is confirmed for your deployment.

3. Programmable call handling — ✅ Available

An Application can handle a call three ways: if call_flow_sid is set, the visual flow engine runs; otherwise the Application is driven by a webhook / WebSocket handler (call_hook_url) or a static verb list (app_json). (Confirm the exact precedence for your build if you mix them.)

Webhook model (jambonz-style):

Request: method = call_hook_method (default POST), JSON body:

{ "callId", "traceId", "accountSid", "applicationSid",
  "from", "to", "direction", "callStatus": "ringing" }

Headers: Content-Type: application/json, User-Agent: SaaS-SBC/1.0, optional Basic auth. (HMAC X-Signature body-signing is supported in the client but there's no UI to store a webhook secret yet, so it's dormant today.)
Response: HTTP 2xx with a JSON array of verbs to execute. HTTP path retries with backoff (10s timeout); a ws(s):// URL upgrades to a bidirectional WebSocket (subprotocol audio.drachtio.org) that auto-reconnects.
Status callbacks: call_status_hook_url receives POSTed call-status updates.

This is fully implemented — point an Application at your service to drive calls programmatically.

4. Event stream (RabbitMQ) — ✅ Available (core)

Services communicate over RabbitMQ topic exchanges (durable). Subscribe with a binding key to consume; integrations typically listen on call.events and media.events.

Exchange	Key routing keys	Meaning
call.events	`call.started` · `call.answered` · `call.ended` · `call.hold` · `call.resumed` · `call.control.start/stop` · `call.originate`	Call lifecycle, hold/resume, supervisor leg, outbound dial request.
media.events	`media.recording.completed` → `media.transcription.complete` (plus `*.failed` variants)	Recording + STT pipeline (recording done → transcription → transcript ingest).
system.events	`agent.state.changed` · `agent.supervisor.coaching` · `agent.offer/accept/reject/missed/...` · `queue.caller.enqueued/dequeued/abandoned` · `queue.assignment` · `system.service.up/down` · `system.config.changed` · `routing.config.changed` · `interaction.*` (call-journey timeline)	Agent delivery handshake, queue/ACD, service discovery, config reload, interaction events.
user.events	`user.registered/unregistered/status_change`	SIP registration.
sentiment.events	`sentiment.score/emotion/summary`	AI sentiment.

Reserved vs emitted

A few keys are defined but not emitted yet (e.g. user.*, sentiment.*, queue.metrics, call.transferred/ringing/failed, some interaction.* variants) — sentiment currently lands in call_records columns via the report/live-NLP path rather than on the bus. Build against the keys you can observe in your environment.

5. SIP trunk interop — 🟡 Partial (plaintext today)

Area	Reality
Transports	UDP + TCP (inbound `5060`). TLS/SIPS listener is disabled today.
Codecs	`OPUS, PCMU, PCMA, G722, G729` (FreeSWITCH transcodes between them).
Media security	SRTP/DTLS disabled — trunk media is plain RTP. (Browser agent legs use DTLS-SRTP via WebRTC; the trunk side is RTP/AVP.)
Inbound auth	IP-based only — the source IP is matched to a carrier gateway (exact `/32` or CIDR). Outbound REGISTER credential columns exist but registration is not yet implemented.
DTMF	RFC 2833 (PT 101), liberal DTMF. No SIP INFO DTMF.
Keepalive	Gateway OPTIONS health probe every 30s (→ `system.gateway.up/down`).
Limits	Concurrent-call limiter per account and per service-provider (Redis-backed, `maxConcurrentCalls`, 0 = unlimited). No CPS throttle — concurrency only.

Provisioning a trunk: create a Carrier + Gateway(s) in Telephony. Because inbound is IP-auth, give your provider the Orbit gateway IPs and configure the gateway's IP/netmask in Orbit.

6. Agent SDK — ✅ Available

sbc-agent-sdk is a headless npm package: it handles login, agent state, call control, and audio; you render your own UI. Web and React Native are supported via pluggable media adapters (SIP.js is compiled inside the bundle).

import { AgentSession } from 'sbc-agent-sdk';
import { WebMediaAdapter } from 'sbc-agent-sdk/web';

const agent = new AgentSession({ fqdn: 'acme-orbit.comstice.com' }, new WebMediaAdapter());
await agent.login(username, password);   // or agent.exchange(adminToken)
await agent.connect();                    // opens WS + registers softphone
agent.on('offer', (call) => { /* show incoming-call UI */ });
agent.on('call',  (c) => { /* phase: connecting → connected → ended */ });
agent.on('supervisor', (s) => { /* whisper / barge / intercept badge */ });
await agent.setState('available');

Methods: login, exchange, connect/disconnect, logout, setState(available|not_ready|wrap_up|offline, reason?), accept/reject, hold/resume, mute(on), hangup, setOutput(deviceId), getWrapupForm(id), submitWrapup({...}).
Events: connection, state, offer, call, media, supervisor, takeover, error.
Auth is FQDN-scoped (tenant from the subdomain); the backend is unchanged. React Native needs react-native-webrtc + react-native-incall-manager.

Use it to embed the Orbit softphone into your own web or mobile app.

7. Outbound campaigns — 🔜 Definitions only (no dialer yet)

The Campaigns area + REST manage campaign definitions and contact lists (dialer_mode preview/progressive/power, statuses, caller ID, trunk, assigned agent groups, per-contact attempt/result tracking). However, no dialer service originates campaign calls yet — the automated preview/progressive/power engine is not implemented. Treat campaigns as a configurable model today.

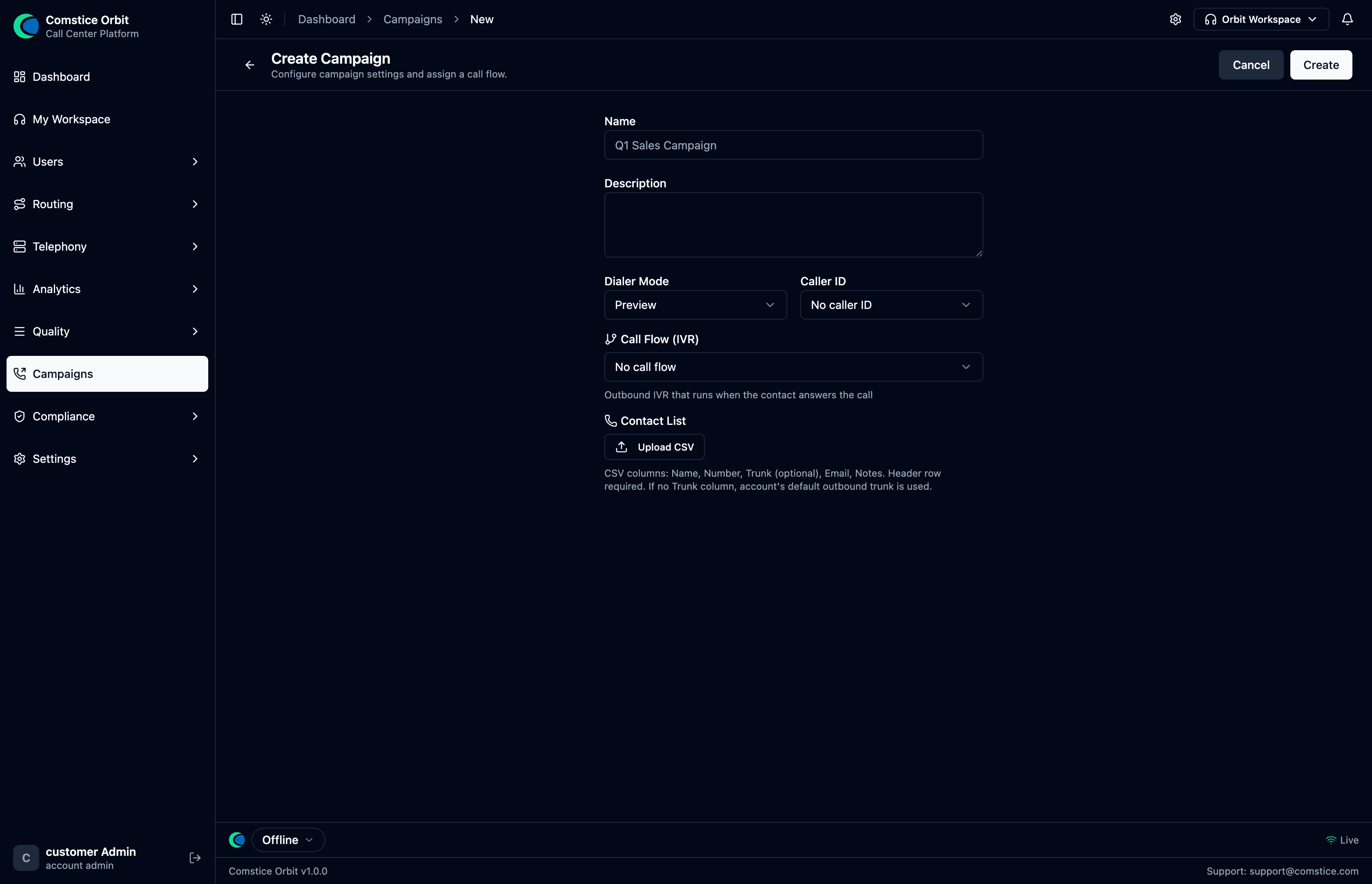

The Create Campaign page The campaign definition form: name, dialer mode (preview / progressive / power), caller ID, outbound trunk, and the agent groups the campaign is assigned to. The definition is stored and manageable today; the dialer that would act on it is not yet wired.

Field	What it does
Name	The campaign's name.
Dialer mode	`preview` / `progressive` / `power` — how aggressively the (future) dialer would place calls.
Caller ID	The number shown to called contacts.
Trunk	The carrier/trunk the campaign would dial out on.
Agent groups	Which agent groups handle the campaign's connected calls.

8. Queue callback — 🟡 Partial

✅ Dispatcher works: when an agent goes available, the callback dispatcher picks the highest-priority eligible callback for that agent's queues (ORDER BY priority DESC, requested_at ASC, multi-instance-safe with SKIP LOCKED), marks it dialing (max 3 attempts), and publishes call.originate to dial the customer and connect the agent.
✅ REST lifecycle: POST/GET/DELETE /api/queues/:queueId/callbacks (license queue-mgmt).
🔜 Caller-facing "press 1 for a callback" in-queue creation is not wired yet — today callbacks are created via the REST endpoint, not by the IVR.

9. Least-cost routing (LCR) — ✅ Available

Outbound carrier selection beyond simple priority routes:

lcr (a named plan, account-level or platform-level) → lcr_routes (regex prefix + priority) → lcr_carrier_set_entries (carrier + priority + workload weight). For a dialed number, Orbit picks the first plan/route whose regex matches, then tries its carriers in priority ASC, workload DESC order with failover. Used automatically by the outbound path.

10. CDR & data export — ✅ Available

Table	What it holds
`call_records`	The primary CDR — legs, account/carrier, timestamps, ring/talk durations, status, hangup cause, sentiment columns, agent/queue ids, feature-presence flags, plus an external `public_id` (uuid) used in API/review URLs.
`interaction_summary`	One row per interaction (trace_id) with derived KPIs: IVR ms, queue wait, connect latency, talk, hold count/time, ACW, AHT, transfer count, abandoned/short-abandon, disposition.
`interaction_segment`	Per-agent ownership windows (talk/hold/ACW/handle, transfer/conference flags).
`usage_meters`	Per-org/product usage roll-up for license enforcement (not per-call).

Export: GET /api/call-records/export (recordings.view) returns CSV (capped 10,000 rows; the export is written to the compliance access log). Columns merge interaction_summary KPIs: Time, Direction, Caller, Callee, Agent, Queue, Status, Journey, Talk, Queue Wait, Hold Count, Hold Time, AHT, Abandoned, Disposition, Sentiment, Recording, Call ID. There is no general CDR push / SFTP feed today — pull via this endpoint.

11. On-prem / offline operation — ✅ By design

Orbit is built to run air-gapped:

Docker Compose uses pre-built image: only — build: is forbidden in compose. Anything needing the internet (npm/pip install, model download) happens only at image-build time, never at runtime.
AI models (STT/TTS/sentiment) are bundled into images; no runtime downloads.
State lives in PostgreSQL + Redis; runtime config is DB-driven (cluster_config), so services need no external config fetch at boot.

This makes Orbit deployable in isolated/regulated networks with no outbound internet at runtime.
