Programmable Voice — Answer Calls From Your Own Server

Customer AdminDeveloper

Most numbers in Orbit are answered by a call flow you draw in the editor. Programmable Voice is the other option: Orbit posts the incoming call to your HTTPS endpoint and runs the instructions your server returns.

Reach for it when the decision needs data or logic that lives in your systems — routing by account balance, a rota held in your own database, a queue chosen by an order's status. Everything else — recordings, transcripts, analytics — keeps working exactly as it does for any other call.

In the app: Telephony → Phone Numbers → open a number → How inbound calls are answered. It is a licensed add-on (programmable-voice); on an account without it the screen simply offers the call-flow field.

---

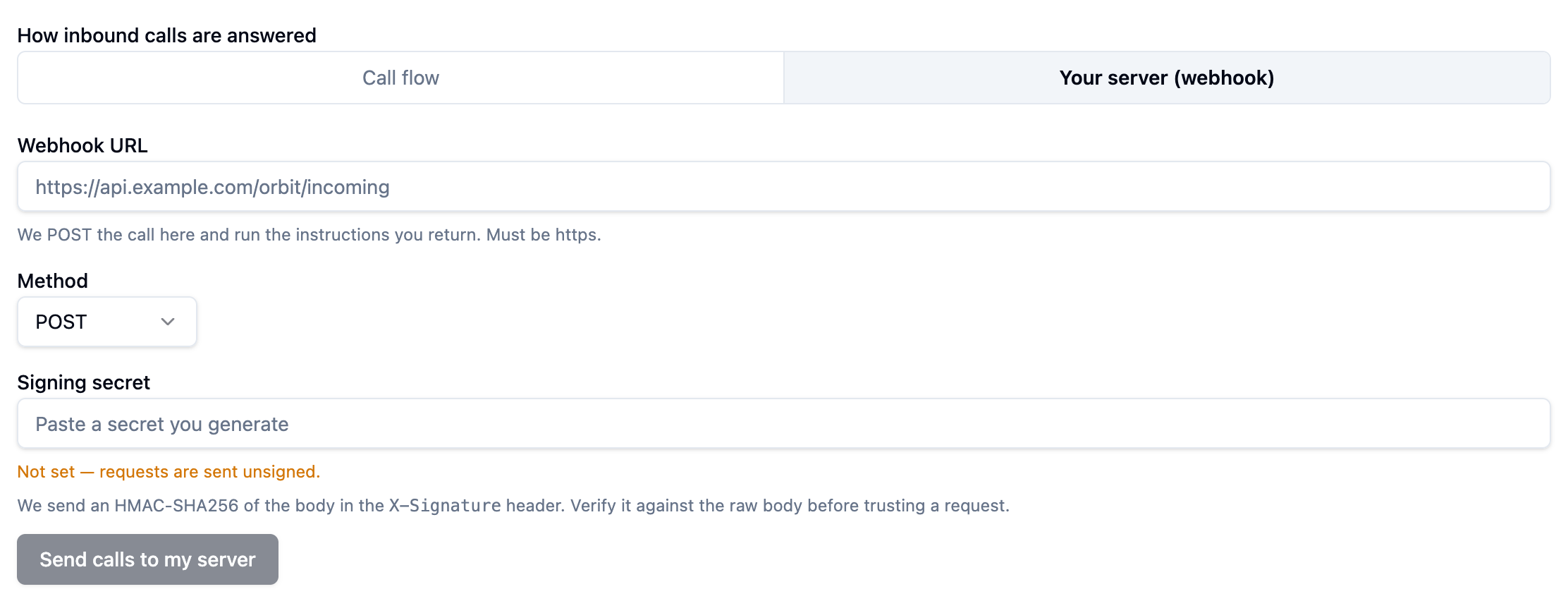

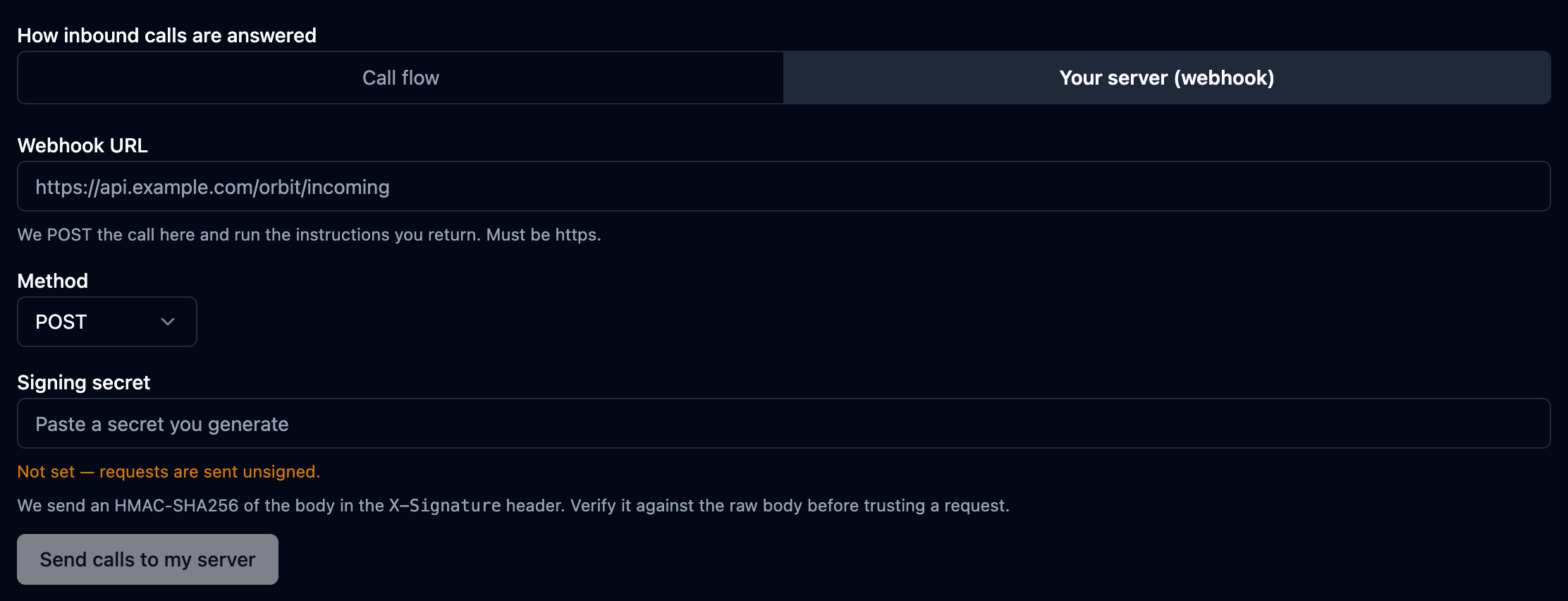

1. Point a number at your server

1. Open Telephony → Phone Numbers and open the number. (Add the number first — the answering mode is set on a saved number.)





2. Under How inbound calls are answered, choose Your server (webhook).





3. Enter the Webhook URL — https://, publicly reachable. Orbit refuses plain HTTP and addresses on private networks.

4. Leave Method on POST — that is what carries the call payload.

5. Set a Signing secret — see §4.

6. Save.

The next call to that number goes to your endpoint.

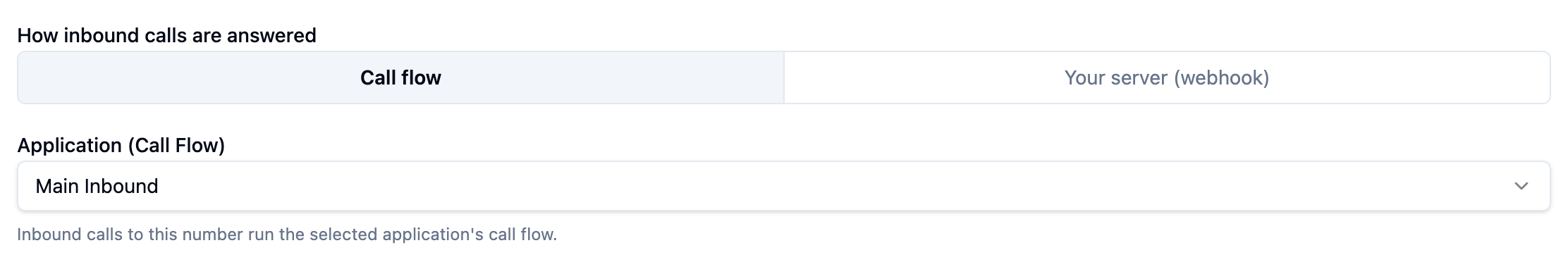

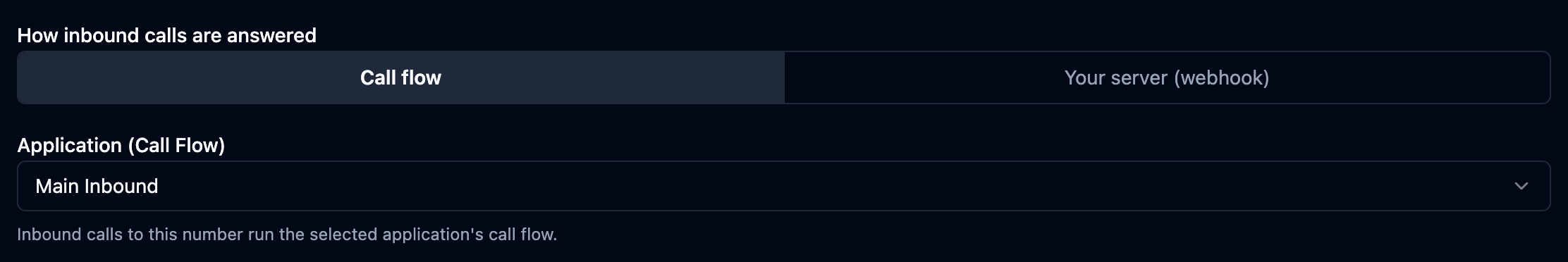

A number answers one way at a time

Choosing a webhook replaces the call flow on that number; switching back restores it. If the number shared its application with other numbers, Orbit gives it one of its own (named Webhook — <number>) so the change cannot leak onto its neighbours.

---

2. What Orbit sends you

As the call arrives — before the caller hears anything — Orbit posts:

POST https://api.example.com/orbit/incoming
Content-Type: application/json
User-Agent: SaaS-SBC/1.0
X-Signature: 9f2c8a1e…

{
  "callId":         "b1e7c0a4-…",
  "traceId":        "3a02f19d-…",
  "accountSid":     "d5aa32ea-…",
  "applicationSid": "5e7dff08-…",
  "from":           "15551001001",
  "to":             "902161234567",
  "direction":      "inbound",
  "callStatus":     "ringing"
}

Field	Meaning
callId	This call leg. It can change if the call is transferred.
traceId	Stable for the whole conversation — the id you will find on the call record, the recording and the transcript. Store this one.
accountSid	Your Orbit account.
applicationSid	The application behind this number.
from / to	Caller number and the dialled number, digits only.
direction	inbound.
callStatus	ringing — the call is not answered yet.

Later requests — a gather's actionHook, or a redirect — are posted the same way, and carry callId, accountSid, applicationSid, from, to and your call tags, plus the digits or speech that were collected.

---

3. What you return

A JSON array of instructions, run in order. Each item is an object with a verb field:

[
  { "verb": "say", "text": "Welcome to Acme Support." },
  {
    "verb": "gather",
    "input": ["dtmf"],
    "numDigits": 1,
    "say": { "text": "Press 1 for sales, 2 for support." }
  },
  { "verb": "queue", "name": "sales" }
]

The whole list is accepted or rejected together

One unknown verb invalidates the entire response — Orbit does not run the good instructions and skip the bad one. Validate what you emit.

Five verbs hand the call over and end the list: dial, queue, conference, record and listen pass control on, so anything after them in the array never runs. Put them last.

Available verbs

say — speak text

Field	Type	Notes
text	string	Required.
language	string	e.g. en-US. Defaults to the application's language.
voice	string	Defaults to the application's voice.
loop	number	Repeat count. Default 1.

play — play an audio file

Field	Type	Notes
url	string	Required. WAV or MP3, reachable over HTTPS.
loop	number	Default 1.

gather — collect keypresses or speech

Field	Type	Notes
input	string[]	["dtmf"], ["speech"], or both. Default ["dtmf"].
numDigits	number	Expected digit count. Omit to collect until finishOnKey.
timeout	number	Seconds to wait. Default 5.
finishOnKey	string	Default #.
say / play	object	Prompt to play while listening.
actionHook	string	URL that receives { digits, speech } and returns the next instructions.

dial — connect the caller to someone

Field	Type	Notes
target	object[]	Required, tried in order. Each { type, name }, where type is user, phone, sip or queue.
timeout	number	Ring timeout in seconds. Default 60.
callerId	string	Overrides the presented number. Must be a number your account owns.
record	boolean	Record this leg. Default false.

queue — place the caller in a queue

Field	Type	Notes
name	string	Required. Queue name as configured in Orbit.
moh	string	Music-on-hold stream. Default default.
timeout	number	Maximum wait in seconds. Default 300.
timeoutHook	string	URL called if the wait runs out.
announcePosition	boolean	Default true.
announceInterval	number	Seconds between announcements. Default 30.

conference — join a conference room

Field	Type	Notes
name	string	Required.
muted	boolean	Join muted. Default false.
startOnEnter	boolean	Default true.
endOnExit	boolean	Default false.
maxParticipants	number	Default unlimited.
record	boolean	Default false.

record — start recording

Field	Type	Notes
format	string	mp3 or wav. Default mp3.
stereo	boolean	Separate channels per party. Default true.
statusHook	string	URL notified when the recording is ready.

listen — stream the audio to your service

Field	Type	Notes
url	string	Required. wss:// endpoint.
mixType	string	mono, stereo or mixed. Default mixed.
sampleRate	number	8000 or 16000. Default 16000.
metadata	object	Sent with the first WebSocket message.

pause, hangup, redirect, tag

Verb	Field	Notes
pause	length	Seconds to wait. Default 1.
hangup	reason	Optional, recorded on the call record.
redirect	url	Fetch the next instructions from another URL (posted like the first request).
tag	data	Key/value metadata attached to the call record.

---

4. Verify the signature

With a signing secret set, every request carries an X-Signature header: the HMAC-SHA256 of the request body, hex encoded, with no prefix.

const crypto = require("crypto");

const expected = crypto
  .createHmac("sha256", process.env.ORBIT_SIGNING_SECRET)
  .update(rawBody)                       // the raw bytes, BEFORE JSON.parse
  .digest("hex");

if (expected !== req.headers["x-signature"]) {
  return res.sendStatus(401);
}

Use the raw body

A parsed and re-serialised JSON object has different bytes, and the signature will never match. In Express, use express.raw({ type: "application/json" }), or the verify callback on the JSON parser.

Orbit stores the secret encrypted and never returns it — the screen shows only its last four characters. Keep your own copy when you create it.

---

5. Timeouts and failures

Situation	What happens
No reply within 10 seconds	The request is retried — 3 attempts in total, 0.5 s then 1 s apart.
Any non-2xx status	Counted as a failure and retried the same way.
An empty body	Read as "no instructions": the call is ended.
An empty array, or an unknown verb	The response is rejected.

The caller is waiting in silence while your endpoint thinks, and a reply that never arrives leaves them with nothing to hear. So treat the webhook as a latency budget, not a place to work:

Answer first, work later

Return a short instruction immediately — a say and a queue — and do the slow part afterwards. A CRM lookup inside the webhook reply makes every caller wait for your slowest dependency, and a 500 from it costs you the call.

---

6. Test before you go live

1. Point the number at a request-capture service and place a call, so you can see the exact payload your endpoint will receive.
2. Reply with the smallest valid body and confirm you hear it:

   [{ "verb": "say", "text": "Webhook is working." }, { "verb": "hangup" }]

3. Turn on signature checking and confirm a request signed with the wrong secret is rejected by your own code.
4. Switch back to a call flow at any time from the same screen.

---

7. The call record is unchanged

A webhook-answered call produces the same call record, recording, transcript and analytics as any other call — see Recordings, Transcripts & AI Analytics. Use traceId from the payload to line your own records up with Orbit's, and the Developer chapter's API to pull them.
